Steel Tanks

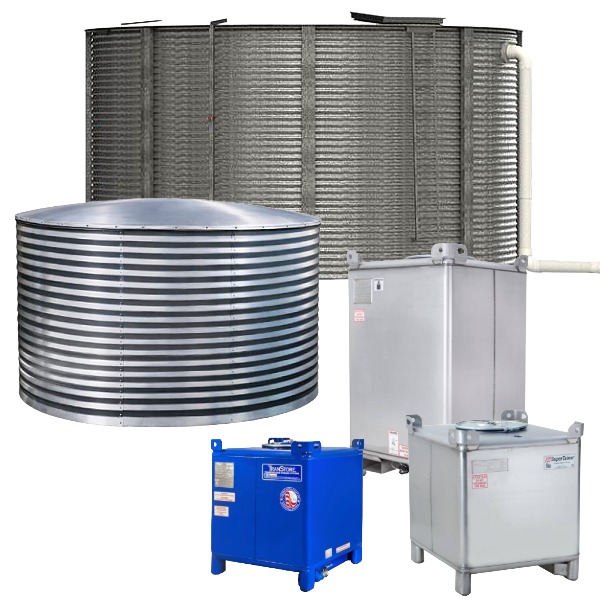

Protank provides steel tanks in two build types: portable totes and site-assembled bulk tanks. Steel totes are commonly used to handle chemicals, oils, and lubricants, range from 110 to 793 gallons, ship ready for use with a forkliftable footprint, and move with their cargo. Site-erected metal tanks arrive as panel kits and bolt together on an engineered foundation, in capacities from a few thousand gallons up to hundreds of thousands.

Steel Storage Tank Categories

Stainless Steel IBC Tanks

Stainless steel tote tanks come standard in 304 grade steel from 110 to 793 gallon capacities, with sizes from 119 gallons up qualifying as UN/DOT approved metal IBCs. Alternative grades 304L, 316, and 316L stainless steel are available on request to match specific cargo-container compatibility and quality requirements. 316/316L provides improved chloride and acid pitting resistance. Grade 304 SS is recommended for general chemical, food, and pharmaceutical applications.

Ideal for: repeat chemical and food grade handling where the container outlives the contents.

Carbon Steel Tote Tanks

Painted carbon steel totes range from 110 to 550 gallons and feature the one-piece stamped bottom, lifting lugs, and forkliftable footprint of stainless IBCs at lower cost. Carbon steel totes are recommended for oils, lubricants, and non-aggressive solvents. Protank's carbon steel totes are not UN/DOT marked and are intended for onsite storage, batching, dispensing, and transfer applications rather than regulated transport.

Ideal for: bulk oil and lubricant handling, fleet and shop service, closed-loop repackaging and distribution.

Galvanized Steel Water Tanks

Galvanized corrugated steel tanks provide high volume storage in standard capacities ranging from 3,000 to 102,000 gallons, with engineered models available up to 200,000 gallons on quote request. They feature modular, round, ribbed wall sheets that bolt together onsite. The corrugated profile provides structural integrity and lowers freight and assembly costs. Roof type, inlet and overflow sizing, liner grade, and accessories can be customized per build.

Ideal for: fire reserve, stormwater, irrigation, agriculture, rainwater harvesting, and potable water storage beyond poly tank volumes.

Steel Bolted Tanks

Flat panel, steel bolted tanks range in capacity from roughly 2,400 gallons to several hundred thousand gallons, with larger builds engineered per project. Options include galvanized, glass fused, epoxy, powder coated, and weathered steel finishes, with liners available in EPDM, butyl, or PVC to extend service range from water into process, wastewater, mining, and chemical duty. Bolted steel storage tanks are quoted per project.

Ideal for: municipal and industrial scale storage, remote or limited access sites, data center water storage, and bulk non-water storage.

How to Choose a Steel Tank

1. Total Capacity Required

The application's required total working capacity determines suitable steel tank model types.

• Metal IBC Totes: Size is limited from 119 gallons minimum to 793 gallons maximum for UN/DOT approved totes. Applications storing, dispensing, distributing, or moving larger quantities utilize multiple totes or other container products.
• Bulk Steel Tanks: Site-erected steel tanks start around 2,400 gallons and extend to hundreds of thousands of gallons by quote.

Bulk steel tanks also require foundation, engineering, and installation costs that a rotomolded poly tank doesn't need in every use case. For smaller volumes and compatible applications, consider our vertical storage tanks and water tanks.

2. Transport Duty vs Fixed Installation

Regulatory compliance for steel tanks depends on whether the unit is mobile and used for transport duty or stationary in a fixed installation.

• Transport Totes (Packaging): A tote that travels with its contents on public roadways or freight networks is subject to cargo securement, weight, and driver licensing rules. Tote loads totaling 1,000 gallons or more can require a tank vehicle endorsement. When contents are a regulated hazardous material, the tote must also carry a valid UN31A marking and a current requalification record. Confirm classification with the product's SDS before shipping.
• Field-Erected Tanks (Structures): Fixed corrugated and bolted steel tanks are governed by state and local building codes. Permitting and approval depend on site specific environmental factors that can include wind speed ratings, seismic design categories, and snow loads. Large, high volume installations typically require a foundation designed and stamped by an engineer licensed in the install state.

3. Containment Surface and Material Compatibility

The wall material in direct fluid contact differs between portable totes and site-erected steel tanks, and is a deciding factor when the container will be used to store chemicals or solutions.

• Direct Containment (Totes): In a metal IBC tote, the wall is the primary containment surface. The specific steel alloy (e.g., 304 vs 316), internal coating, and gaskets must be directly matched to the chemical properties of the stored liquid to prevent damage or hazardous reactions.
• Lined Containment (Site-Assembled Tanks): In a corrugated steel tank, the galvanized shell provides structural support only and does not contact stored liquid by design. A geotextile pre-liner and a factory welded flexible membrane liner are used for liquid containment. Bolted steel storage tanks are available with various finishes and liner options to match different liquid storage applications and compatibility requirements.

4. System Integration and Plumbing

Steel tanks are specified into a broader fluid management system or an operational workflow. Both tank types can be connected to pipes, hoses, valves, and pumps with the proper equipment and setup.

• Tote Valving and Elastomers: For tote tanks, the valve, gasket, and any attached fitting materials must be matched to the liquid independently of the base wall construction. Specifying a premium 316 stainless tote can still fail if the selected elastomer degrades upon contact with the chemical payload.
• Bulk Tank Port Configurations: Site-erected steel tanks require custom ports, fittings, and design depending on the end application. The roof profile, inlet and outlet sizes and connection types, and overflow control are set by whether the tank is used in a fire protection system, backup water reserve array, agricultural irrigation line, industrial process loop, or rainwater catchment and delivery.

Steel Tank Standards and Markings

Steel tank certification is product and configuration dependent. Protank can supply accompanying product documentation on request.

Metal IBC Tote Markings

• UN31A: the IBC design code, accompanied by the designated packing group letter, gross mass, and stacking load.

Bulk Steel Water Tank Standards

• NSF/ANSI 61: potable water certification, carried by the liner, not the steel shell.
• ASCE 7: wind, seismic, and snow load basis for the tank's structural calculations.
• AWWA D103: the standard for factory coated bolted steel water tanks, available when specified.
• NFPA 22 and FM Approvals: acceptance determined per jurisdiction and system design. Request product documentation before specifying a tank into a fire protection application.

When a Steel Tank Isn't the Right Fit

Specific chemical profiles, volume needs, and operational environments may require alternative materials and products. When a project's specifications make steel incompatible or a less suitable option, choose the correct tank type:

• Acids and Oxidizers: Chemical service involving fluids that aggressively attack or degrade steel (e.g., hydrochloric acid, sodium hypochlorite) may be compatible with polymer construction. See our plastic IBC and tote tanks.
• Low Volume Water Storage: For water storage in the low thousands of gallons, one piece rotationally molded tanks are faster to deploy and have a lower purchase cost. They ship fully assembled and often eliminate the need for poured, engineered foundation packages. See our water tanks and vertical storage tanks.
• Built-in Secondary Containment: Protank no longer offers galvanized steel double wall tanks. For applications that require integrated secondary containment for regulatory compliance, see our double wall storage tanks, used oil tanks, and stackable oil tanks.
• Buried or Aggressive Long Duration Chemical Service: These steel tanks are not designed for underground installation or long term aggressive chemical holding without specialized coatings. For underground placement or harsh chemical service, see our fiberglass tanks.

Steel Tank Freight and Delivery

Steel tote tanks ship assembled and self-contained on standard LTL. The base accepts forklifts and pallet jacks. Offloading on delivery requires a loading dock, a forklift, or standard LTL liftgate service. If your facility does not have a loading dock or forklift, request liftgate service on quote.

Site-erected metal tanks ship as unassembled panel kits and are erected onsite by a trained crew. Lead time varies by the engineering package and the foundation. The structural calculations and pad should be scheduled or completed before the delivery date.
