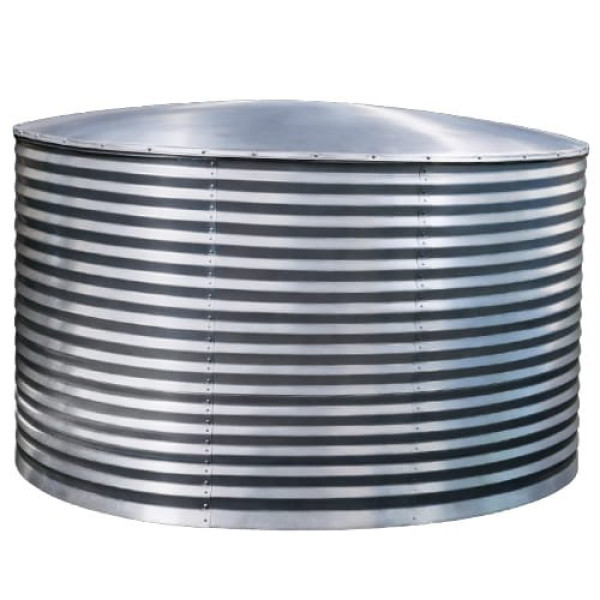

3,453 Gallon Steel Water Tank

Have a Question? Call us at (866) 776–8265

Save For Later Add To Compare

Share

Description

  • High Strength G90 Corrugated Steel Tank

  • NSF/ANSI 61 Certified for Potable Water Use Tank Liner

  • Corrugated Dome Roof

  • 2" Outlet and Valve

  • 6" Overflow and Downpipes

  • 16" Leaf Filter Basket

  • 20 Year Warranty

Specifications

Part # VWA3453
Product Type Vertical Water Tank
Technical Drawing Aqualine VWA3453 Drawing
Documents Aqualine Brochure
Material Steel
Tank Structure

Tank Components

  • Bolts & Nuts: Grade 5
  • Trusses: Galvanized
  • Roof Screws: Hex head with sealing washer ASTM A 510
  • Wall Panels: .040 (20 gauge) corrugated G90 galvanized
  • Dome Roof Panels: 26 gauge corrugated Galvalume
  • 10° and 30° Roof Panels: G90 Galvanized
  • Bartlett Potable Water Liner: BPA-Free and Phthalate-Free
  • Plumbing Outlets: Poly nylon OR stainless
  • Ball Valves: Stainless
  • Flanges - Hot Dipped Galvanized

Standard Tank Accessories

  • 2" Outlet and Ball Valve
  • 6" Overflow Assembly with Down Pipe & Flapper
  • 24" Access Hatch
  • Leaf Filter Basket
  • Liner Underlayment

Optional Accessories

  • Galvanized Steel Flanges 2" - 12"
  • 2" Stainless Bulkhead Fittings
  • Bolted Access Wall Panels
  • Ladder, Ladder Block Off, Ladder Safety Cage
  • Anti-Vortex Assembly
  • Mechanical Level Indicators
  • Rural FDC Connections
  • FDC Connections
  • OS&Y Gate Valve
Translucent No
Manufacturer Warranty 20 Year "No Leaks" Warranty
Dimensions 108" Diameter x 90" Height
Capacity (Gallons) 3453
