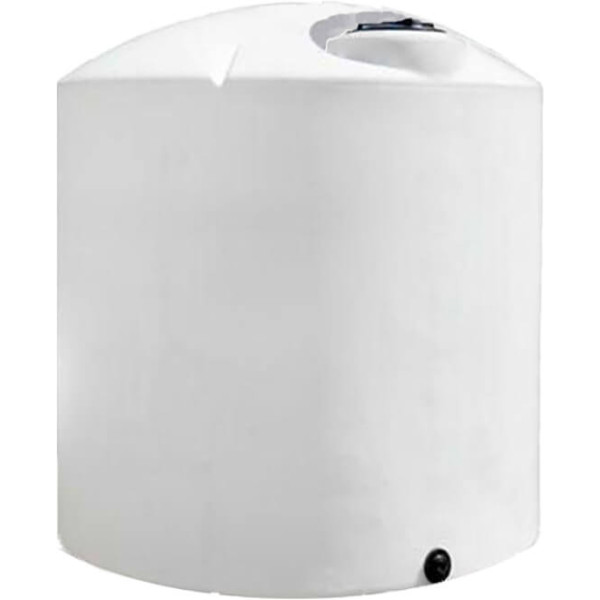

5000 Gallon Poly Vertical Storage Tank

* Required Fields

Save For Later Add To Compare

Share

Specifications

Part # VSN5000-102
Product Type Vertical Storage Tank
Technical Drawing Protank VSN5000-102 Drawing

Protank VSN5000-102 TX Drawing
Weight (lbs) 1131
Ship Freight Class 300
UV Inhibitors Yes
Material Polyethylene
Translucent No
Gallon Indicators Yes
NSF Sticker Availability California, Ohio, Texas, Utah, Washington
Manufacturer Warranty 5 Year Warranty
Dimensions 102" Diameter x 152" Height
Capacity (Gallons) 5000
Liquid Access 1 Outlet - 1 Manway / Lid
Outlet / Drain 1 3" PP Female NPT Bulkhead Fitting w/ 2" Reducer
Manway / Lid 1 16" Threaded Vented Manway
Max Temp Allowed 130° F / 54° C
Selected Product 4693
