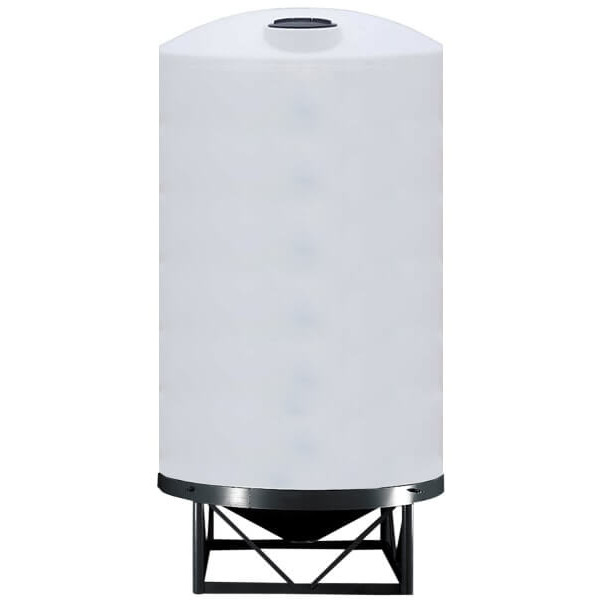

6000 Gallon Plastic Conical Tank

* Required Fields

Save For Later Add To Compare

Share

Specifications

Part # CBN6000-10DEG
Product Type Cone Bottom Tank
Technical Drawing Protank CBN6000-10DEG Drawing
Weight (lbs) 1330
UV Inhibitors Yes
Color Natural White
Material Polyethylene
Translucent Yes
Full Drain 99% Drainable
Gallon Indicators Yes
NSF Sticker Availability Ohio
Dimensions 102" Diameter x 195" Height
Capacity (Gallons) 6000
Cone Angle 15°
Height with Stand (inches) 208
Liquid Access 1 Outlet - 1 Manway / Lid
Outlet / Drain 1 3" PP Female NPT Bulkhead Fitting
Manway / Lid 1 16" Threaded Vented Manway
Max Temp Allowed 130° F / 54° C
